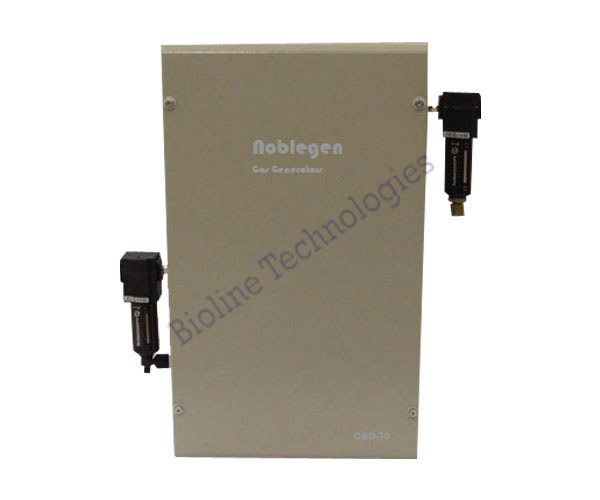

Clean Dry Air Generator


Noblegen offers a range of small and efficient Compressed Air Dryers (CAD), utilising the reliable and efficient PSA technique to remove moisture from the air to give a dewpoint of –40°C. All the Dryer range are controlled using a PLC and manifold valves to give reliable and efficient operation. Either bench or wall mounted the Noblegen CAD range is an important part of any efficient laboratory removing the need for high pressure gas cylinders.


Dryers Available

• 70 L/min
• 115 L/min
• 180 L/min
• 230 L/min
• 340 L/min
• 450 L/min
‘Optional outlet regulator & gauge assembly as above on request’

Applications

• AA Spectrometers
• NMR Spectrometers
• GC-ATD
• General Laboratory applications

Standard Features

> Al l P LC cont rol led
> Separate i n let and exhaust valves f i t ted
> Bench or wal l mount
> Low maintenance
> 2 years war ranty
> Qui e t operation

Options

> Add it ional i n let & out let f i l trat ion on request
> Out l e t r egulator and gauge
> Ex Hazardous area version

Benefits

> Replaces high pressure gas cyl inders
> Constant gas qua l i ty
> Compact design
> Meets the requirement s o f most TOC and FT- IR instruments

Techinical Specification

Model Model Inlet / Outlet
Flow l/min
(Air / N2)
Dimensions mm (ins) Weight
Kg (lbs)
    Height
mm (ins)
Width
mm (ins)
Depth
mm (ins)

 CAD-070  70  500 (19.6)  300* (11.8)  200 (7.9)  18 (39)
 CAD-115  115  500 (19.6)  300* (11.8)  200 (7.9)  20 (44)
 CAD-180  180  600 (23.6)  400* (15.7)  250 (9.8)  25 (55)
 CAD-230  230  600 (23.6)  400* (15.7)  250 (9.8)  27 (59)
 CAD-340  340  600 (23.6)  400* (15.7)  250 (9.8)  30 (66)
 CAD-450  450  800 (31.5)  600* (23.6)  300 (11.8)  35 (77)

Techinical Data

 Ambient Temp range  5-35°C (41-95°F)
 Max Working Pressure  10 barg (145 psig)
 Purity  Dewpoint: -40°C (-40°F)
 Particulate: <0.1 micron
 Non-methane HC <0.01ppm
 Oil <0.1mg/m³
 Electrical Supply  220v a.c. / 1ph / 50Hz or
 110v a.c. / 1ph / 50-60Hz
 Inlet / Outlet connections  G 1/4” (BSP) Female
