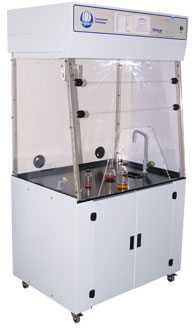

Fume Hood

The use of Chemcap™ carbon filtration make it ideal for a mixed use school laboratory and removes a very wide variety of fumes. Cabinet has trapezium shaped front access as standard with double hinged front doors for easy access to cabinet interior. The base tray is black which is excellent for highlighting spillages. Two service ports with covers are provided in the rear panel.

When trolley is included in purchase the cabinet becomes fully mobile, with large castors to assist with moving between classrooms on potentially uneven floors.

Features:

  • Quite operation, less than 50 dBA and low power consumption.
  • Lockable front access doors
  • Vanometer airflow indicator.

Standards

Bigneat Educational Ductless Portable Fume Cabinets exceed the requirements of design note 29 and Building Bulletin 88 governing the use of fume cabinets in schools.

Construction and Materials

Bigneat cabinets are manufactured from polyester coated steel, aluminium uprights are anodised for added protection, offering exceptional structural strength to support the 8mm thick transparent panels which are highly corrosion resistant and easy to clean in the event of accidental spillage.

Front door flaps are hinged to enable easy access for larger items of equipment.

Free Risk Assessment Service

What are your risks? Please contact us for a free assessment and our chemist will undertake a risk analysis and suggest the best filter for your purposes. Please click on the download button to the right.

Cabinets Size & Part Number

Model Description External mm
EDU 806 MC Portable fume cabinet with robust epoxy coated
mild steel box section trolley, cupboards doors
with magnetic catches. Lockable castors.
1020 (w) x 750 (d) x 1950 (h)
EDU 806 M Portable fume cabinet with robust epoxy coated
mild steel box section trolley. Lockable castors.
1020 (w) x 750 (d) x 1950 (h)
EDU 806 Portable fume cabinet for mounting on to bench. 1020 (w) x 750 (d) x 1950 (h)
