Untitled Document
  Magnetic Stirrers

Laboratory Equipments














Click To Enlarge

Magnetic Stirrers

The stainless steel top housing series of magnetic stirrers are most compact models. PMDC motorsgiveshigh torque even at lower speeds and maintains speed stability despite viscocity or volume changes. Accurate steeples speed control allow smooth variation up to 1200 rpm. Stirring is accomplished by a small Teflon coated magnetic paddle to be placed in the container.



Click To Enlarge

Rotamantles

These are specially designed to meet laboratory requirement of convenient stirring in flask with simultaneous uniform heating by heating by mantles. These have two tier construction with the upper compartment consisting of heating element. Accurate stepless speed control allows smooth variation up to 1200 rpm, Heating energy is controlled by energy regulator.



Click To Enlarge


Magnetic Stirrers With Hotplate

The 'MLH' series magnetic stirrers with hot plate are similar to the ML series of magnetic stirrers but have additional stainless steel hot plate. PMDC motor gives higher torque evev at lower speeds and maintains speed stability despite viscosity or volume changes. Accurate steeples speed control allows smooth variation up to 1200 rpm. Heating energy is controlled by energy regulator.

Salient Features

> PMDC motors for higher torque even at low speeds.
> Better low speed stirring even with small volume.
> Accurate stepless speed control maintains excellent speed stability.



Click To Enlarge

Deluxe Magnetic Stirrers

These delux magnetic stirrers are unique in design, totally enclosed, highly chemical resistant even to acid and alkali. Ideal for all types of laboratory stirring applications from 500 ml to 10 liters. These magnetic stirrers give better speed regulation even at low speed. The stirring speed and heating energy is controlled by stepless speed and energy regulators.

Sailent Features

> Digital speed indicator for display of stirring speed.
> PMDC motors for higher torque even at low speeds.
> Better low speed stirring even with small volume.
> Accurate stepless speed control maintains excellent speed stability.
> Specially designed for corrosive atmosphere reducing the chances of fumes entering the unit.
> Available with or without Hot Plate.



Click To Enlarge

Electromagnetic Stirrers

Electromagnectic stirrer are ideally suitable for titration & general lab mixing of solution. They incorporate superior stepless speed controller to control the speed from 100 to 650 RMP.

Sailent Features

> No moving parts or motors.
> Reverse control provides automatic change of direction.
> Accurate stepless speed control maintains excellent speed stability despite viscosity or volume changes.
> Stirring capacity upto 1000 ml.

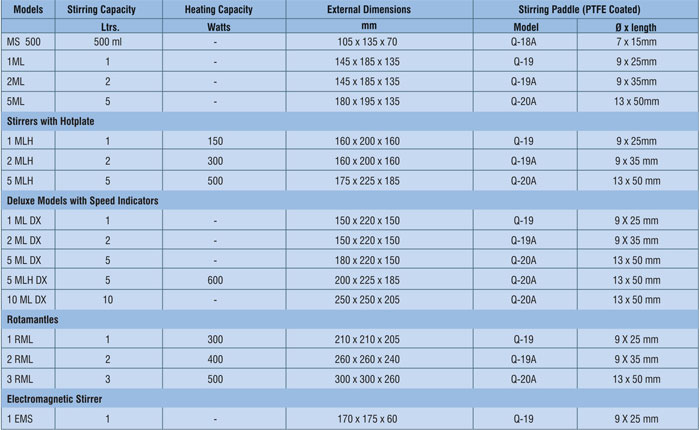

Technical Data


  >> Quote Enquiry
