  Industrial Stirrer

Laboratory Equipments












Industrial Stirrer



Three types of Industrial Stirrer

> Alligator
> Emulsifier
> Geared Stirrer

Alligator

Manufactures laboratory stirrers, Portable Mixer, Hollow Shaft top entry / side entry Agitator and Emulsifier.

All above equipment can be supplied with VF drive to get variable speed and frequency . For applications where instant Start / Stop is required or to cut production cycles in fixed space and time , Eltek brake motors are used for thw equipment.

Motors

Eltek motors are made in house that confilm to IEC specification and BIS standards. All motors are asynchronous three phase totally enclosed fan cooled (T.E.F.C) type with class 'F' insulation and index of protection IP 55

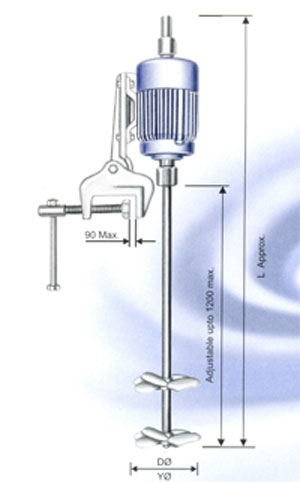

Eltek holllow Shaft Stirrer PHA Model

Eltek hollow shaft stirrer comes with brass nut and collet and the shaft height can be easily adjusted in the hollow spindle for smooth and vibration free operation. All the stirrer shaft are of stainless steel AISI 304. In case of concentrated chemicals AISI 316 grade are recommended. The propellers are punched out oj S.S. Plates and duly curved at an angle. If the vessel is deep and the solution is of high viscisity value, two propellers are recommended for uniform flow and effortless mixing.



Technical Data (PHA Model)

Model No HP / KW RPM D ø mm Yø mm
PHA -1/8 -1A 0.5 / 0.37 720 150 120
PHA -1/6 -1B 0.5 / 0.37 960 150 120
PHA -1/4 -1C 0.5 / 0.37 1440 120 100
PHA -2/8 -2A 1.0 / 0.75 720 170 150
PHA -2/6 -2B 1.0 / 0.75 960 170 150
PHA -2/4 -2C 1.0 / 0.75 1440 150 120
PHA -3/8 -3A 2.0 / 1.5 720 200 170
PHA -3/6 -3B 2.0 / 1.5 960 200 170
PHA -3/4 -3C 2.0 / 1.5 1440 170 150
PHA -4/8 -3A 3.0 / 2.2 720 200 170
PHA -4/6 -3B 3.0 / 2.2 960 200 170
PHA -4/4 -3C 3.0 / 2.2 1440 200 170

D ø mm of propeiler vwhen only one is used.
Y ø mm of propelier when two are used.

Emulsifiers

Bioline emulsifiers EMR Model are specially recommended for all the research laboratories for carrying oyt various process like emulsification, mixing , homogenizing, dispersion. suspension and disintegration. At vasai plant in thane district our R & D team is working on various molecular analysis to cater any type mixing and stirring application.

Technical Data (EMR Model)

Model No HP / KW RPM D mm P mm H mm L mm
EMR 1A 1.0 / 0.75 2800 25 75 1220 750
EMR 1B 1.0 / 0.75 1380 25 100 1240 750
EMR 2A 1.5 / 1.1 2800 25 90 1220 750
EMR 2B 1.5 / 1.1 1380 25 100 1250 750
EMR 3A 2.0 / 1.5 2800 25 100 1260 900
EMR 3B 2.0 / 1.5 1380 25 125 1275 900
EMR 4A 3.0 / 2.2 2800 30 125 1420 900
EMR 4B 3.0 / 2.2 1380 30 150 1445 900
EMR 5A 5.0 / 2.7 2800 30 175 1475 900
EMR 5B 5.0 / 2.7 1380 30 175 1475 900

Geared Stirrer

> For mixing highly viscous fluids eltek low speed geared stirrer provided with marine type impeller are used
> Futher if speed lower than 360 RPM is desired, then turbine type impellers are provided to achive result.
> Anchor type impellers are provided for completed mixing ensuring that batch does not settle down inside the tank.
> Motors from 0.5 HP to 3 HP can be supplied for this range. All ratios available as per customers requirement.
> Dimension available on request.

Technical Data (EL Model)

Model No HP / KW RPM D ø mm Yø mm
EL-9-2 0.33 / 0.25 160 150 120
EL-9-3 0.50 / 0.37 240 200 170
EL-9-5 0.50 / 0.37 160 200 170
EL-9-7 0.75 / 0.55 240 250 200
EL-9-7A 0.75 / 0.55 160 250 200
EL-9-9A 1.00 / 0.75 360 300 250
EL-9-9B 1.00 / 0.75 240 300 250
EL-9-9C 1.00 / 0.75 240 160 250
EL-9-10A 1.50 / 1.1 360 325 300
EL-9-10B 1.50 / 1.1 240 325 300
EL-9-11A 2.0 / 1.5 360 350 300
EL-9-11B 3.0 / 2.2 360 400 350
