   Donor Couch


Blood Bank Equipments











Click To Enlarge

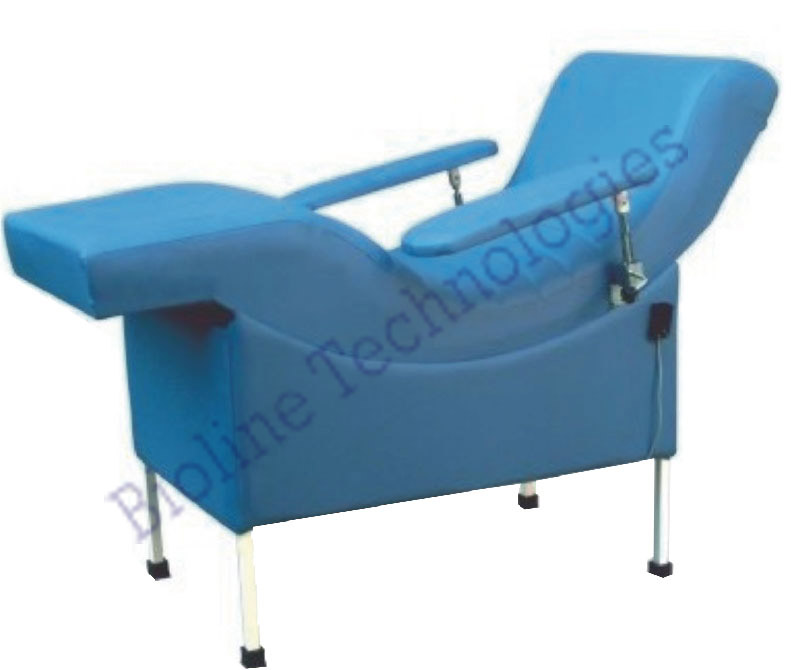

Donor Couch

An elegant design focused on superior, safety & hygiene, combined with maximizing comfort for the donor & the operator. The intelligent design significantly reduces the incidence of vasovagal attacks associated with blood donation.

Superior Design

Quick Conversion to “shock position” within 10 seconds of actuation. Single profile design ensures that the donor position remains unchanged during conversion to the “shock Position” minimizing additional discomfort to the donor. The wedge shaped armrest aids a good venipunture thereby facilitating optimal blood flow. The resting surfaces are designed with every type of donor in mind – even the tallest donor will be comfortable on the comfy couch & a swing – out armrest facilitates seating.



Safety

Unique position of the feet ensures adequqte blood supply to the head consistent with the hermodynamic of the body , thus minimizing the incident of Vasovagal Attack . Our Couch  remote control buttons are logically placed to avoide any confusion during operational that may involve the donor or the operator. Low centre – of – gravity ensures that the Comfy Couch is very stable & dose not tip over. The donor Couch has the provision for placing all devices & accessories required for the donation – this helps avoid RSI (Repetitive Strain Injuries).

Hygiene

Single profile design ensures that all surfaces are smooth & easy to clean . Smooth dust resistant construction Removable trays for all the accessories facilitates easy cleaning.

Special featurers

  • Volume can be set in 1 ml. increments .
  • Provision of pausing collection & changed programmed volume during pause
  • Micro controller based program.
  • Volume can be set from 1ml to 999ml.
  • Display of weight & volume
  • Auto tare facility to accurate for the weight of the bag
  • Motor activated clamping at the end of the collection
  • Audio visual alarm to alert in case of any abnormal condition
  • Auto calibration
  • Overload indication
  • Highly user friendly system with LCD messages.
  • Display of the time taken for collection
  • Diagnostic mode for technical analysis.
  • Technical Data

    Model NO

    JA-30

    JA-301

     Profile length

     1920mm

     1920mm

     Seat height

     600mm

     600mm

     Weight armrest

     150mm

     150mm

     Length armrest

     600mm

     600mm

     BCM tray size

     400mm x 280mm

     400mm x 280mm

     Sphygmomanometer tray size

     270mm x 130mm

     270mm x 130mm

     IV Stand

     Integrated IV Pole

     Integrated IV Pole

     Tube Sealer tray size

     370mm x 160mm

     370mm x 160mm

     Wheel diameter

     100mm

     100mm

     Maximum load Lifting

     150Kg

     150Kg

     Control

     Remote

     Remote

     Upholstery

     2.5” Thickness

     2.5” Thickness

     Battery back up

     NA

     2-3 Hrs

     Power Consumption

     100 W

     100W

     Poer supply

     230VAC

     230VAC
